Roll to Roll Flexo Printing Machine
₹1,400,000.00
| Model | Fl -41200 | Fl -41400 | Fl-41 600 |
| Max. width of profiting material | 1200mm | 1400mm | 1600mm |
| Max. printing width | 1160mm | 1360mm | 1560mm |
| Length range of printed product | 300-1000mm | 300.1000mm | 3001-000mm |
| Max. diameter roll material | <1>6 00mm | <1>600mm | <1>600mm |
| Printing speed | 50rrv’min | 50rrv’nin | 50rrv’min |
| Printing speed of High Speed | 100mtmin | 100nvm’ in | 100rrv’min |
| Thickness of plate
(Including Two- Sidsel unpaper) |
2.38mm | 2.38mm | 2.38mm |
| Power | 15-18kw | 15-18kw | 18-20kw |
| Weight of machine | 3000kg | 3500kg | 3500kg |
| Overall dimensions(mm) | 4500x2000x2300 | 4500x2100x2300 | 4500x2400x2300 |
Related products
High Speed Flexo Printing Machine

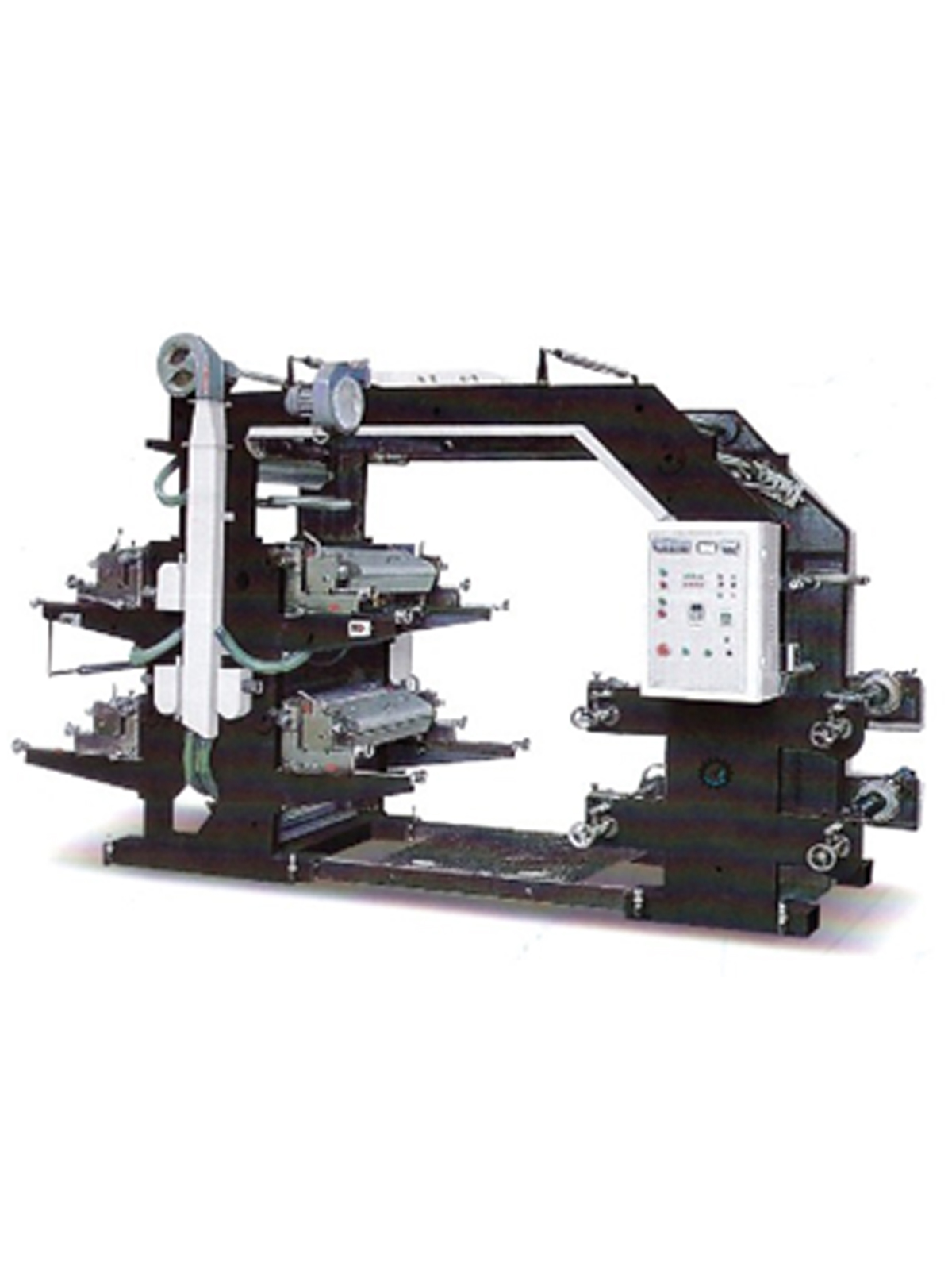

Non Woven Roll to Roll Flexo Printing Machine is ideal for printing various Images, designs and patterns of different colors on nonwoven fabric , plastic & paper etc. This machine is heavy duty and built with cast iron material,available in twomodulesin2 colour & 4colour.
Special key Features:
Epc Con Trolller: Maintaining the uniform direction of the roll , resulting accurate printing alignment and makes rewinding more flawless.
Auto Tension Controller: Achieve synchronization between the roller, auto control the unwind & rewind tension.
Airshaft: Tightens the core of the roll after putting material on paper tube to avoid slips.
Pnuematic Pressure Wheel: Provide ink automatically when the material is passed through it.
PNUEMATIC IMPRESSION: provide the impression automatically when the fabric is passed through it
